Machines & specifications

Every machine ships with a PLC and touchscreen HMI. Specifications below are as supplied for the standard configuration — most models can be adapted to your product and pouch format.

Model CT-SU-01+

High-Speed Servo Soap Cutting Machine

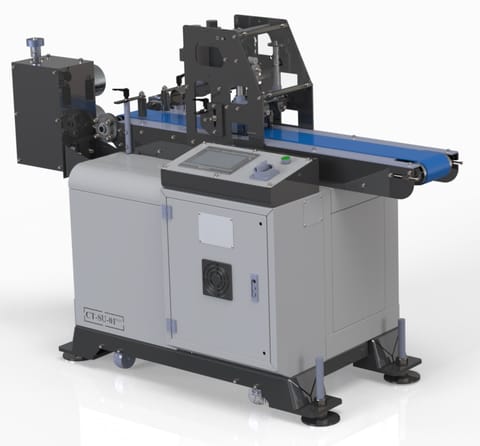

CT-SU-01+ servo soap cutting machine, front view

Precision cutting · 200–300 cuts per minute · servo controlled

A next-generation soap cutting solution designed for speed, accuracy and reliability. Powered by a high-performance servo motor, it produces clean, consistent cuts at speeds up to 300 cuts per minute, suiting high-throughput production environments.

High-speed precision cutting: up to 300 cuts per minute with servo-synchronised tracking
Clean vertical cut: smooth cutting of both soft and hard soap bars
Smart servo control: dynamic adjustment of cut timing and blade position
Integrated safety system: e-stops, guards and overload protection
Compact, modular design: integrates with extruders or conveyors

CT-SU-01+ technical specifications
Application	Soap bar cutting (toilet soap, detergent soap)
Cutting speed	200 – 300 cuts per minute
Drive system	High-torque servo motor
Cutting mechanism	Vertical blade with horizontal tracking
Control system	PLC + HMI touchscreen interface
Conveyor belt	Synchronised automatic speed control
Printing module	Synchronised dual-side logo printing module
Motor type	AC servo motor with position feedback
Blade type	Hardened stainless steel (replaceable)
Soap size range	Width 30–100 mm · height 15–60 mm · length adjustable
Position accuracy	±0.5 mm with encoder synchronisation
Power supply	220V / 380V, 50Hz
Power consumption	Approx. 4 kW
Machine dimensions	Approx. 1500 × 800 × 1400 mm (L × W × H)
Weight	Approx. 700 – 800 kg

Model CT-SU-01+D

Dual-Line High-Speed Servo Soap Cutting Machine

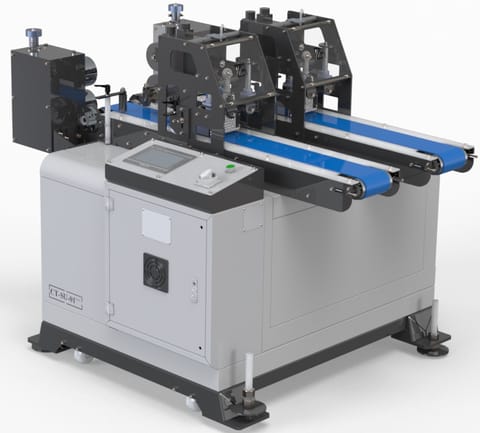

CT-SU-01+D dual-line servo soap cutting machine

Double output · 400–600 cuts per minute · dual-track servo precision

A dual-lane version of our high-performance soap cutting system, built for maximum throughput without compromising cutting quality. Two independent cutting tracks, each driven by a synchronised servo system, deliver up to 600 precise cuts per minute for high-volume soap production lines.

CT-SU-01+D technical specifications
Application	Soap bar cutting (toilet, detergent, herbal soaps)
Cutting speed	400 – 600 cuts per minute (200–300 per lane)
Drive system	Dual high-torque servo motors
Cutting mechanism	Two vertical blades with horizontal servo tracking
Control system	Centralised PLC + dual servo control + HMI
Motor type	Independent AC servo motors for each lane
Blade type	Hardened stainless steel blades (individually replaceable)
Soap size range (per line)	Width 30–100 mm · height 15–60 mm · length adjustable
Position accuracy	±0.5 mm with rotary encoder feedback
Power supply	220V / 380V, 50Hz
Power consumption	Approx. 5 – 6.5 kW
Construction	SS304 frame, modular design
Machine dimensions	Approx. 1550 × 1100 × 1700 mm (L × W × H)
Weight	Approx. 600 – 700 kg

Model FP-3S-200

High-Speed Flow Packing Machine

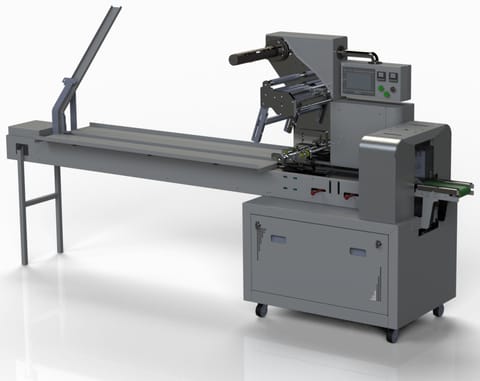

FP-3S-200 horizontal flow packing machine

Three servo motors · all-electronic · minimal mechanical design

A horizontal flow wrapping machine engineered for speed, precision and reliability. A fully electronic design powered by three servo motors delivers synchronised motion with minimal mechanical wear.

All-electronic design: fewer mechanical parts, less maintenance and noise
Three independent servo motors: precise control of feeding, pulling and sealing
Versatile: suitable for bakery, soap, pharma, hardware and confectionery
Easy changeover: quick product and film size adjustments
Optional add-ons: date coder, gas flushing, automatic feeding systems

FP-3S-200 technical specifications
Type	Horizontal flow pack – pillow pack
Drive system	3 servo motors (infeed, film pull, sealing jaw)
Packaging speed	Up to 200 packs per minute
Power supply	220V / 380V, 50Hz
Power consumption	4.0 kW
Control system	PLC + HMI touchscreen
Film material	Heat-sealable laminated films (OPP/CPP, PET/PE, etc.)
Bag dimensions	Width 30–120 mm · height up to 50 mm · length adjustable
Printing module	Synchronised dual-side logo printing module
Film width	Max. 300 mm
Sealing type	Longitudinal and end sealing (rotary jaws)
Temperature control	PID digital, independent for each heater
Touchscreen functions	Speed control, count, error logs, product memory
Photocell for marking	Included – for printed film registration
Machine dimensions	Approx. 3500 × 1000 × 1500 mm (L × W × H)
Machine weight	Approx. 400 – 500 kg

Model PK-PC-03

Vertical Form Fill & Seal Machine

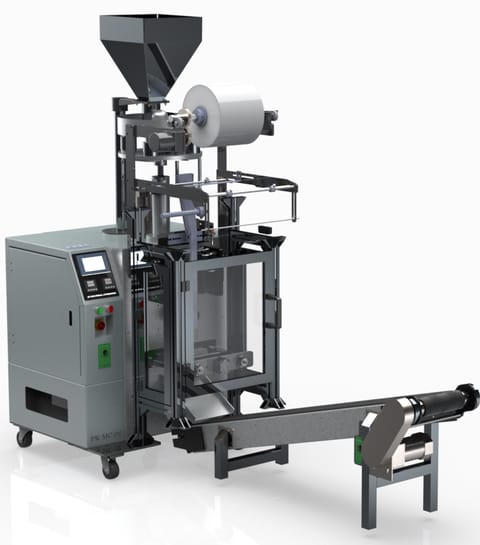

PK-PC-03 vertical form fill and seal machine

Electro-pneumatic · 30–50 packs per minute · volumetric cup filling

A high-performance electro-pneumatic packaging solution for granular and free-flowing products such as sugar, rice, grains, spices, dry snacks and detergent powder. Built for medium to high-volume production lines.

PK-PC-03 technical specifications
Application	Free-flowing products and granules
Packaging speed	30 – 50 packs per minute
Power supply	220V / 380V, 50Hz
Power consumption	Approx. 3.5 – 4.5 kW
Control system	PLC + touchscreen HMI
Filling mechanism	Volumetric cup
Sealing type	Centre seal / pillow pouch
Sealing width	40 – 180 mm (adjustable)
Sealing height	Up to 200 mm (depends on pouch length)
Film roll width	Up to 360 mm
Film material	Heat-sealable laminated film
Compressed air requirement	6 bar, 250 – 350 L/min
Machine dimensions	Approx. 2100 × 950 × 2200 mm (L × W × H)
Weight	Approx. 520 kg

Model PK-PC-02P

Vertical Form Fill & Seal Machine — Auger Filler

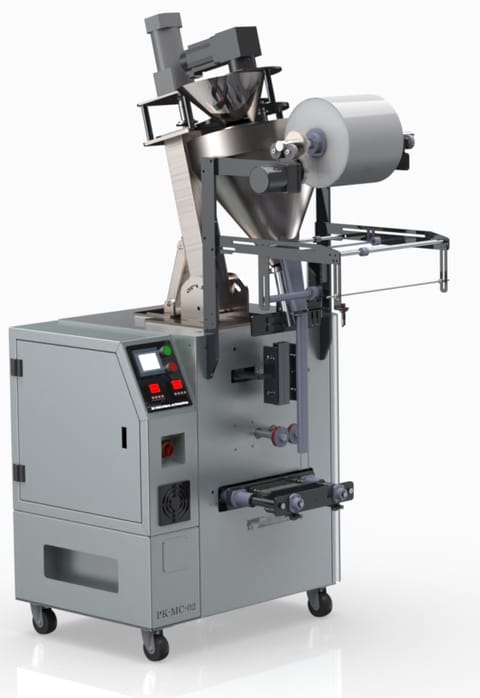

PK-PC-02P vertical form fill and seal machine with servo auger filler

Servo-driven auger filler · for powder packaging

A high-precision vertical form fill and seal machine purpose-built for fine powders such as spices, flour, milk powder, coffee and chemical powders. The servo-driven auger filler offers accuracy, hygiene and automation for modern powder packing.

Precision filling using a servo-controlled auger system
Screw feeder and agitator for consistent dosing
Sealed design to minimise dust emission
Optional extras: nitrogen flushing, batch/date coding, film alignment sensor

PK-PC-02P technical specifications
Application	Fine powder materials
Packaging speed	18 – 50 packs per minute
Power supply	220V / 380V, 50Hz
Power consumption	Approx. 3.5 – 4.5 kW
Control system	PLC + touchscreen HMI
Filling mechanism	Servo-driven auger filler
Auger motor	High-torque servo motor (adjustable RPM)
Sealing type	Centre seal / pillow pouch
Sealing width	40 – 150 mm (adjustable)
Sealing height	Up to 200 mm (depends on pouch length)
Film roll width	Up to 300 mm
Film material	Heat-sealable laminated film
Dust control	Built-in powder collection chute / port
Construction	SS304 food-grade frame
Machine dimensions	Approx. 1100 × 950 × 2200 mm (L × W × H)
Weight	Approx. 420 kg

Model PK-MS-01

Side Sealing Vertical Form Fill & Seal Machine

PK-MS-01 side sealing vertical form fill and seal machine

Precision side sealing · 30–70 packs per minute · compact and versatile

A side sealing vertical form fill and seal machine for efficient packaging of free-flowing products into side-sealed pouches. Designed for flexibility and reliability, with strong seals and precise bag formation at speeds up to 70 packs per minute.

Side sealing system: a clean, premium package style
Flexible product range: powders, granules, hardware and small parts
Servo film pulling system: accurate film tracking (optional upgrade)
Quick film changeover for maximum uptime
Optional add-ons: date coding, gas flushing

PK-MS-01 technical specifications
Application	Free-flowing granules, powders, snacks, non-food items
Sealing type	Side sealing with bottom sealing
Packaging speed	30 – 70 packs per minute
Power supply	220V / 380V, 50Hz
Power consumption	Approx. 2.0 kW
Control system	PLC + HMI touchscreen interface
Film material	Heat-sealable laminated films (PET/PE, BOPP/CPP, etc.)
Bag width range	20 – 80 mm (adjustable)
Bag length range	25 – 150 mm (adjustable)
Film roll width	Up to 200 mm
Machine dimensions	Approx. 1200 × 1000 × 2200 mm (L × W × H)
Weight	Approx. 350 – 400 kg

CNC division

Precision machining

Components machined in-house, both for our own equipment and as a standalone service for other manufacturers.

Capabilities

CNC Milling (VMCs): High-speed vertical machining centres for complex 3D components and high-accuracy parts.
CNC Turning (CNC Lathes): Precision turning for a variety of metals and plastics, ensuring tight tolerances and smooth finishes.
EDM (Electrical Discharge Machining): Wire and sinker EDM for intricate cuts and hard-to-machine materials.
Laser Cutting (Fiber and CO₂): High-speed CNC fiber and CO₂ laser machines for precision cutting of metals, plastics and composites.
Gear Hobbing: High-precision gear cutting for a wide range of gear types, sizes and profiles with tight tolerances.
Tapping Stations: Efficient tapping for consistent threading across various materials.
CNC Press Brake: Precision bending and forming of sheet metals with high repeatability and accuracy.
Surface Grinding: Fine surface finishing for critical flatness and surface texture requirements.
