3-Servo Motor – All-Electronic – Minimal Mechanical Design

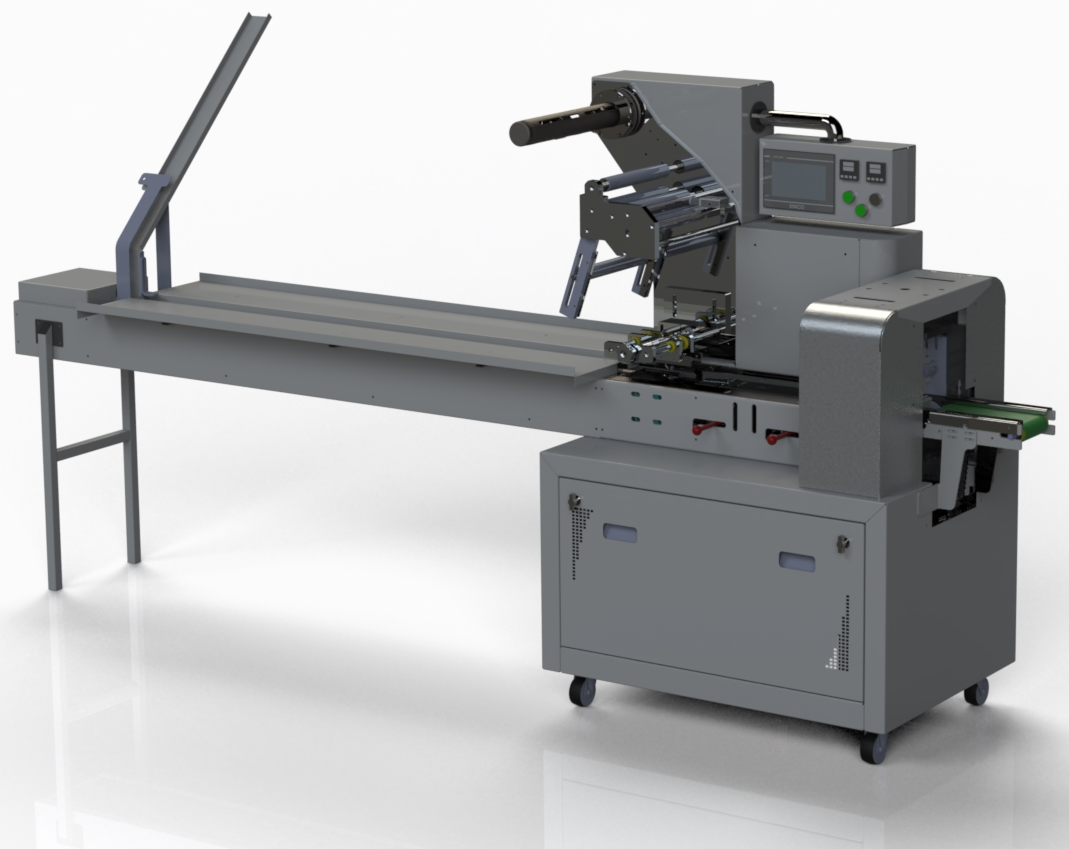

The FP-3S-200 is a state-of-the-art horizontal flow wrapping machine engineered for maximum speed, precision, and reliability. With a fully electronic design powered by three high-performance servo motors, it delivers smooth, synchronized motion with minimal mechanical wear—perfect for high-output production environments.
Technical Specifications
| Parameter | Details |
| Model | FP-3S-200 |
| Type | Horizontal Flow Pack – Pillow Pack |
| Drive System | 3 Servo Motors (Infeed, Film Pull, Sealing Jaw) |
| Packaging Speed | Up to 200 packs per minute |
| Power Supply | 220V / 380V, 50Hz |
| Power Consumption | 4.0 kw |
| Control System | PLC + HMI Touchscreen |
| Film Material | Heat-sealable Laminated Films (OPP/CPP, PET/PE, etc.) |
| Bag Dimensions | Width: 30 – 120 mm Height: up to 50 mm Length: adjustable |
| Printing module | Synchronized dual side logo printing module |
| Film Width | Max. 300 mm |
| Sealing Type | Longitudinal and End Sealing (Rotary Jaws) |
| Temperature Control | PID Digital, Independent for Each Heater |
| Touchscreen Functions | Speed Control, Count, Error Logs, Product Memory |
| Photocell for Marking | Included – For Printed Film Registration |
| Machine Dimensions | Approx. 3500 x 1000 x 1500 mm (L x W x H) |
| Machine Weight | Approx. 400 – 500 kg |
Key Features
- All-Electronic Design: Minimal mechanical parts reduce maintenance and noise
- 3 Independent Servo Motors: Precise motion control of feeding, pulling, and sealing
- High-Speed Operation: Up to 200 ppm with excellent repeatability
- User-Friendly Interface: Touchscreen with recipe memory and production stats
- Versatile: Suitable for bakery, soap, pharma, hardware, confectionery, and more
- Easy Changeover: Quick product and film size adjustments
- Optional Add-ons: Date coder, gas flushing, automatic feeding systems
