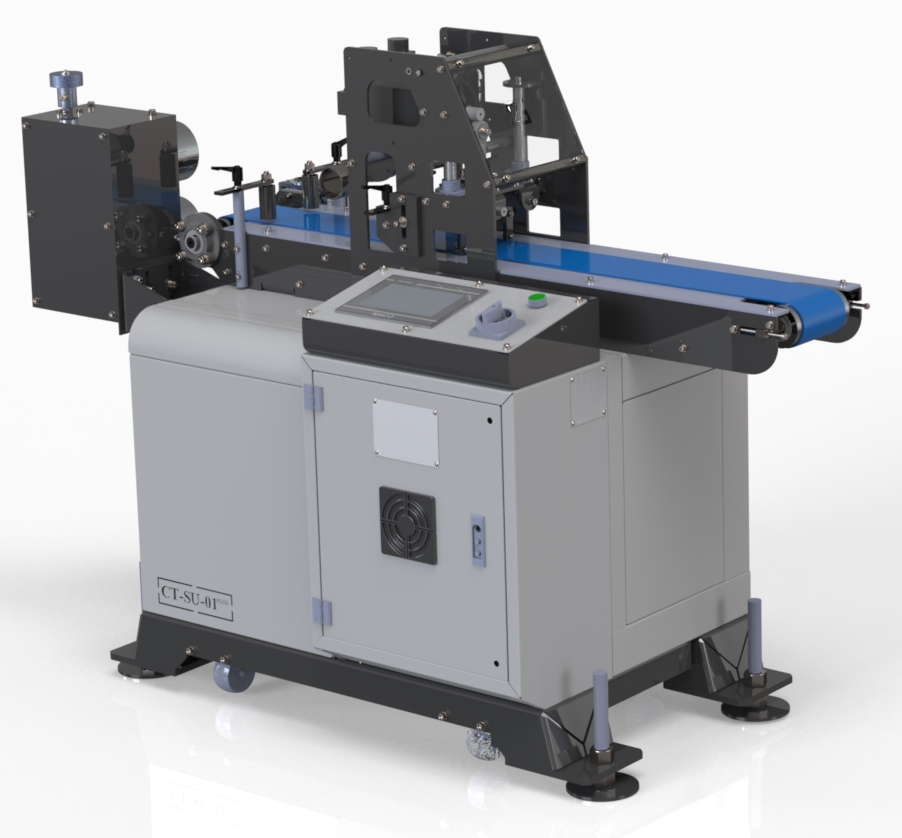

CT-SU-01+ High-Speed Servo Soap Cutting Machine
Precision Cutting | 200–300 Cuts per Minute | Servo Controlled
The CT-SU-01+ is a next-generation soap cutting solution designed for speed, accuracy, and reliability. Powered by a high-performance servo motor, it ensures clean, consistent cuts at speeds up to 300 cuts per minute, making it ideal for high-throughput production environments.
Technical Specifications
| Parameter | Details |
| Model | CT-SU-01+ |
| Application | Soap Bar Cutting (Toilet Soap, Detergent Soap) |
| Cutting Speed | 200 – 300 cuts per minute |
| Drive System | High-Torque Servo Motor |
| Cutting Mechanism | Vertical Blade with Horizontal Tracking |
| Control System | PLC + HMI Touchscreen Interface |
| Conveyor belt | Synchronized automatic speed control |
| Printing module | Synchronized dual side logo printing module |
| Motor Type | AC Servo Motor with Position Feedback |
| Blade Type | Hardened Stainless Steel (Replaceable) |
| Soap Size Range | Width: 30–100 mm Height: 15–60 mm Length: Adjustable |
| Position Accuracy | ±0.5 mm with encoder synchronization |
| Power Supply | 220V / 380V, 50Hz |
| Power Consumption | Approx. 4 kW |
| Machine Dimensions | Approx. 1500 x 800 x 1400 mm (L x W x H) |
| Weight | Approx. 700 – 800 kg |
Key Features
- High-Speed Precision Cutting: Up to 300 cuts per minute with servo-synchronized tracking
- Clean Vertical Cut: Smooth and sharp cutting of soft and hard soap bars
- Smart Servo Control: Dynamic adjustment of cut timing and blade position
- Integrated Safety System: E-stops, guards, and overload protection
- User-Friendly Interface: Touchscreen HMI for parameter settings, diagnostics, and speed control
- Compact and Modular Design: Easy to integrate with extruders or conveyors
